Unibrain FireBoard 800-e Pro Dual bus 1394b PCIe karta Fire Wire 800

Unibrain FireBoard 800-e Pro Dual bus 1394b PCIe karta Fire Wire 800  ( pouze karta , bez licence k Unibrain FireAPI™ development kitu )

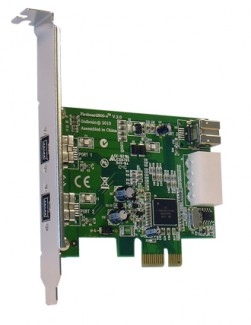

FireBoard800-e™ Pro Dual is Unibrain’s next generation of 1394b PCI Express x1 add-in interface card, which features two (2) 1394b (Firewire-800) busses with two (2) 1394b 9 pin ports allocated for each bus.

Fireboard800-e Pro DualTM is ideal for multi-camera acquisition systems that require fast and reliable data transfers to the host system.

The card allows simultaneous image acquisition from up to 16 cameras at total data throughput of 160 MB/sec using a single x1 PCIe slot, and utilizes deep isochronous FIFO’s that guarantee an uninterrupted data flow.


Software Support:

   Windows XP/Vista/7/8/10 32/64 bit, Windows Server 2008/2012.
   Mac OS X 10.4.x or later.
   Linux.

Features

   Dual LSI FW643-e, High Performance 1394b to PCI Express OHCI integrated Link/PHY host controller chipset.
   OHCI Compliant/Compatible with any FireWire device or peripheral.
   Serial data rates: 400Mbps and 800Mbps.
   Four (4) fully backward compatible, Bilingual 1394b, 9 pin ports at up to 800 Megabits per second (Mbit/sec).
   Internal power connector (big IDE) for extra power stability.
   Industrial 1394b screw lock cables support.
   RoHS and WEEE compliant.
   Sixteen (16) independent isochronous transmit/receive DMA channels.
   160 Mbytes/sec total bandwidth throughput.
   Operating Temperature: 0~65' C, Storage Temperature: -20 ~ 100' C.
   Humidity Operating : 0 ~ 80% RH, Non-condensing.
