Opticis DisplayPort 1.2 Data Recovery Repeater opakovač a booster 4K DP signálu

Opticis DisplayPort 1.2 Data Recovery Repeater opakovač a booster DP signálu . Instaluje se 3-5 metrů od zdroje signáu a dovoluje prodloužení na 15-20m , dle signálu , po metalickém kabelu  .

Distance info.
3m from the Source / 15m to the Display at DP 1.2
5m from the Source / 20m to the Display at DP 1.1

ResolutionResolutionResolutionResolutionResolution Resolution
Up to 4K UHD( 3840×2160 at  60Hz
Maximum Data rate  21.6Gbps (5.4Gbps per lane)
(RBR, HBR, HBR2)
power supply - lze napájet z USB nebo externího zdroje

V balení

• One (1) DPAX
• One (1) USB Power Cable
• User’s Manual

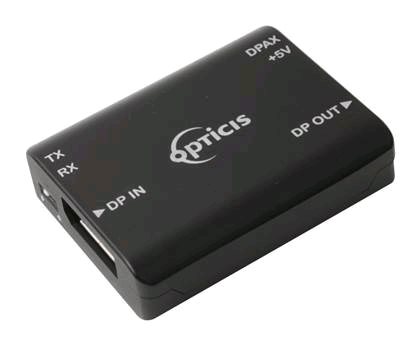

DPAX is an active repeater for DisplayPort video signal to increase video transmission of a DisplayPort signal up to combined length of 18m(59ft) over premium grade DisplayPort cable.

DPAX complies with DisplayPort 1.2 standards, and supports Ultra High Definition (up to 3840×2160) at 60Hz with auxiliary channel, MST function. DPAX has been especially designed to work with Opticis fiber-optic DisplayPort Extenders, DPFX-200, DPFX-100 and M1-5000, to extend DisplayPort signal transmission even longer.

Key features include:

   Complies with DisplayPort 1.2 standards.
   Supports Ultra High Definition (up to 3840×2160) at 60Hz.
   Offers data recovery function.
   Transmits DisplayPort 1.2 data up to 18m (59feet) over premium grade DisplayPort cable.
   Offers total data rate 21.6 Gbps (5.4Gbps per lane).
   Supports auxiliary channel, MST function.
   Supports much longer extension through daisy-chain connection.
   Designed so that compatibility could go well with Opticis DisplayPort extenders for optical transmission.
   Operated by USB cable or DC power supplying adapter.
   Dimensions (WDH): 39.5x50x13mm.

Availability: Now.
