Opticis 2 fiber Detachable DVI Extender Module M1-201DA-TR ( 2 pack, LC-LC) WUXGA

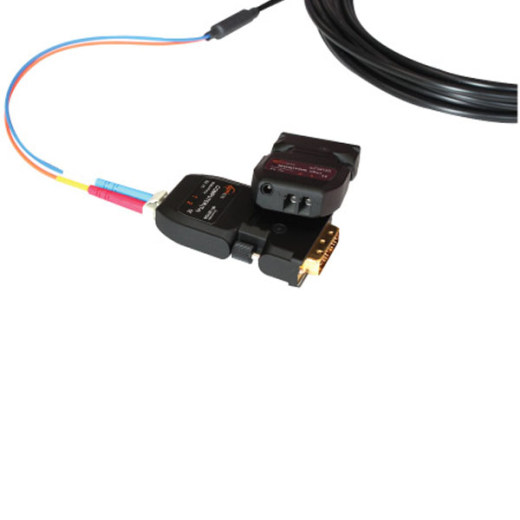

Opticis 2 fiber Detachable DVI Module M1-201DA-TR

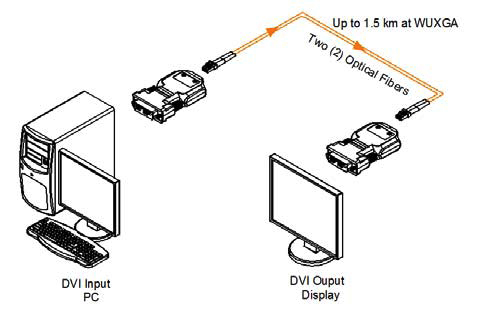

M1-201DA-TR is capable of driving uncompressed WUXGA (1920x1200) 60Hz DVI signal up to 1,500m (4920feet) over a duplex LC single-mode or 500m (1640feet) over a duplex LC multi-mode fiber. The key features of M1-201DA-TR is, by using an optical passive splitter (OPS-216L), one (1) signal from transmitter can be copied up to 16 times and it gives you a cost effective and space saving installation for various application.
For better installation flexibility, it features patent pending Self-EDID management, reading and restoring by just plugging to the display. It is also certified with IEC/EN 60601-1-2, FCC/CE and Class 1 LASER Eye Safety for various applications.

Features:

   Supports up to WUXGA (1920x1200), 60Hz
   Supports bit rates up to 1.65Gbps per channel.
   Uncompressed DVI signal up to 1,500m (4,920feet) over a duplex single-mode fiber or 500m (1,640feet) over a duplex multi-mode fiber with LC terminated connectors.
   Small and solid aluminium enclosure.
   Easy and simple installation.
   Reads and restores the targeted EDID in the transmitter (Self-EDID).
   Provides Power, Status (Signal transmission in transmitter and signal detection in receiver) LED indicators.
   Auto-power switching.
   Operating temperature: 0 ~ 50?.
   Storage temperature: -30 ~ 70?.
   Input power: +5V 1A.
   Size (WDH): 39 x 69 x 15mm.


Shipping Group:

   Transmitter, Receiver: 1 set.
   +5V 1A adapter: x2
   User manual
