GefenTV Wireless for HDMI 60 GHz - bezdrátový extender HDMI 1.3, nekomprimované HD

Gefen bezdrátové prodloužení nekomprimovaného FullHD až do rozlišení 1080p  ( 1920x1080p ) , bezdrátová 60GHz technologie s velkou šířkou pásma 225MHz , podpora HDMI 1.3 , dosah na volném prostoru až 10m. Vhodné pro instalaci, tam kde je důraz na kvalitu obrazu a zvuku a z prostorových nebo technologických důvodů nelze propojit klasickým HDMI kabelem nebo jiným typem drátového extenderu.


Features:

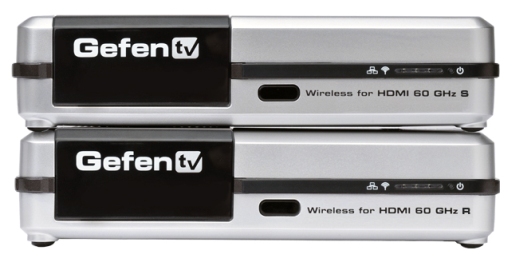

The Wireless for HDMI 60 GHz Extender extends high-quality uncompressed HDMI 1.3 audio/video at resolutions of up to 1080p/60 Hz to any remote display location up to 9 meters away without the hassle of wires. The Wireless for HDMI 60 GHz Extender employs advanced high-frequency radio technology to support the high multi-gigabit data transfer rates of HDMI 1.3 with 8-channel digital audio.

This is a perfect solution in scenarios where traditional cabling cannot be applied. The plug-and-play installation makes it simpler than ever to extend HDMI to another room or to a ceiling projector in a matter of minutes, all without ever having to run cables and drill through walls or ceilings.

During setup and operation, 4 LED Indicators on the front of the Sender and Receiver units will illuminate to indicate operational states such as power status, pairing activity, strength of the wireless signal, and signal blockage.

HDMI 1.3 Features Supported:
225 MHz Video Bandwidth
Lip-Sync Pass Through
Dolby TrueHD & DTS Master Audio
CECS Protocol

Wireless extension of 1080p/60 Full HD audio/video up to 10 meters indoors
Supports up to 8-ch., 24-bit 192kHz LPCM audio
Upgradable firmware via built-in RS-232 serial port
Powerful internal 36-Antenna array
HDMI and HDCP compliant

Note:
This product is fully HDMI and HDCP Compliant. It conforms to the WiHD®©* CTS International Standard.

For optimal quality HDMI signal transmission, we recommend installing the Wireless for HDMI 60 GHz Sender and Receiver units in a horizontally level, line-of-sight orientation in open space without tightly enclosing walls or ceilings. Tightly enclosed spaces such as cabinets will block the radio signal and significantly reduce the range. Obstructions in the radio wave path by furniture and other similarly sized objects should be avoided.

*"WiHD" and the "WiHD" logo are trademarks licensed for use by WirelessHD, LLC.


Tech. Spec.:

Maximum A/V signal extension: 9 meters (open space indoors with no obstructions)
Supported HDTV Resolutions: 640x480i/p @60Hz; 720x480p@60Hz; 720x576i/p@50Hz; 1280x720p at 50,60Hz; 1920x1080i/p@24,50,60 Hz
Supported VESA computer display formats at 60 Hz: 640x480 (VGA), 800x600, 1024x768, 1280x1024
Maximum Video Resolution: 2K (2048x1080p)(HDTV)
Maximum Audio Bandwidth: 8-channel, 24-bit / 192kHz LPCM.
A/V Connector: One Female 19-pin HDMI, Sender and Receiver
Power Connector: One 12V DC input jack, Sender and Receiver
RS-232 Connector: One RS-232 DB9 Female serial port, Sender and Receiver (only for Firmware Upgrade)
Power Switch: One sliding rocker switch, Sender and Receiver
CFG Button: One push button to activate Firmware download on Sender and Receiver
Operating & Storage Humidity: 10% to 90% relative humidity, non-condensing (5% for Storage)
Power Supply: 12V DC, AC 90-230V input
Power Consumption: 18W each
Dimensions: 10,288 cm W x 3,556 cm H x 8,128 cm D each (Sender and Receiver are the same size)
Operating temperature: 0 to 50 degrees C (AC adapter is 0-40 deg.)
Storage temperature: -30 to 70 degrees C
Conforms to WiHD CTS 1.0: International Standards
EMC: USA: FCC Compliant Part 15B; Canada CES-003 & Eur. Union CE 301 489-1 & -3
EMF: European Union CE EN62311
RF: USA FCC Part 15C; Canada IC RSS 210; E.U. CE EN 302 567
Specified low-power radio equipment : Japan


Package includes:

1x Wireless for HDMI 60 GHz Extender Sender unit
1x Wireless for HDMI 60 GHz Extender Receiver unit
2x 12V DC Power Supplies
1x 2 meter HDMI Cable (M-M)
1x User's Manual
1x IR Remote Control
