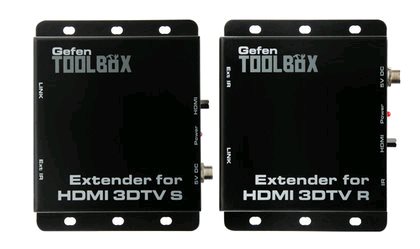

GefenToolBox HDMI / 3DTV extender po CAT-6 až 100m - GTB-HDMI-3DTV-BLK

GefenToolBox HDMI / 3DTV extender HDMI signálu po stíněném  CAT-5e/ CAT-6 až 100m , černá varianta   .

Features:

The GefenToolBox Extender for HDMI 3DTV extends HDMI including multi-channel digital audio at resolutions of up to 1080p60 Full HD up to 330 feet (100 meters) away from any Hi Def source using one CAT-5 cable for the extension. This product also provides an IR back channel to control AV sources using the same CAT-5 cable extension. Using this channel with the optional RMT IR Extender, simply point an IR remote(s) of the A/V device towards the display to control Hi-Def sources as if they were located in the same room or proximity to the display.

HDMI1.3 Features Supported:
- 225 MHz (up to 12-bit YUV 4:4:4 @ 1080p60)
- Dolby TrueHD & DTStm Master Audio
- Deep Color Support (x.v.Color)
- Lip-Sync Pass-Through
- CEC Pass-Though
- 3DTV Pass-Through

- Extends HDMI at 1080p up to 330 ft (100 m).
- Supports HDMI 1.3 with 3DTV.
- Internal / External EDID Management.
- Locking power connectors.
- Built-in IR backchannel allows IR remote control of Source devices.
- Metal enclosure improves RF shielding.
- All-digital signal transmission for zero signal loss.
- This product is HDMI and HDCP-compliant.


Tech. Spec.:

Video Amplifier Bandwidth: 225 MHz
Input Video Signal: 1.2 V p-p
Input DDC Signal: 5 V p-p (TTL)
Maximum Video Resolution: 1080p, supports 3D HDMI signals
HDMI Input Connector: Type A 19-pin (F)
Link Connector: RJ-45 Shielded
Power Indicator: LED (red)
Dimensions: 11,43 cm L x 8,255 cm W x 2,54 cm H
Power Supply: 5 V DC
Power Consumption: 10 W per unit (max.)
Operating Temperature: 0 - 40 ?C
Shipping Weight: 1,0 kg


Package includes:

1x Extender for HDMI 3DTV Sender Unit
1x Extender for HDMI 3DTV Receiver Unit
1x 2m Locking HDMI cable
2x 5V DC Locking Power Supplies
1x User Manual
