GefenToolBox 4K / 2K HDMI extender po CAT-6 až 100m GTB-UHD-HBT

GefenToolBox 4K / 2K HDMI extender po CAT-6 až 100m   GTB-UHD-HBT .Černá varianta .


Gefen GTB-UHD-HBT Features at a Glance

   Extends HDMI, RS-232, and 2-way IR over a single CAT-5e/CAT-6A
       4K Ultra HD (3840 x 2160 @ 60Hz, 4:2:0, 8-bit), up to 330 feet/100 meters
       4K Ultra HD (3840 x 2160 @ 30Hz, 4:4:4, 8-bit), up to 330 feet/100 meters
       4K Cinema (DCI) (4096 x 2160 @ 24 or 30Hz 4:4:4, 8-bit), up to 330 feet/100 meters
       1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 12-bit), up to 330 feet/100 meters
       1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 8-bit), up to 495 feet/150 meters
   HDMI Features Supported:
       HDMI 2.0
       HDCP 2.2 and 1.4
       12-bit Deep Color
       LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master
       Audio™ pass-through
       3DTV pass-through
       CEC pass-through
       Lip Sync pass-through
   IR extension from Sender to Receiver and from Receiver to Sender
   Gefen Bi-Directional POL feature provides power to the Sender or the Receiver unit over the link cable - only one side will need external power
   Uses Gefen’s implementation of HDBaseT™ technology with enhanced features
   Advanced EDID Management
   Firmware updatable via RS-232
   Locking power connector
   Surface mountable

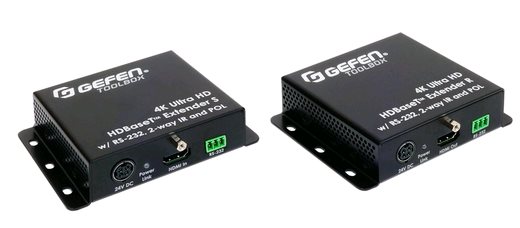

4K Ultra HD HDBaseT Extender
GTB-UHD-HBT

   Description
   Features
   Specs(active tab)
   Resources
   Warranty

Gefen GTB-UHD-HBT Specifications

Shipping Info

   Length4.25 (Inches)
   Width12.1 (Inches)
   Height6 (Inches)
   Weight2.3 (Lbs)
   Unit of MeasureSet
   UPC888814999549

Other Specifications

   Maximum Pixel Clock 300 MHz
   Video Input connector (Sender) (1) HDMI Type A 19-pin, female, locking
   Video Output connector (Receiver) (1) HDMI Type A 19-pin, female, locking
   Link connector (Sender/Receiver) (1) RJ-45, shielded
   RS-232 port (Sender) (1) 3-pin Phoenix - DB-9 adaptor cable included
   RS-232 port (Receiver) (1) 3-pin Phoenix - DB-9 adaptor cable included
   IR Ext/In port (Sender/Receiver) (1) 3.5mm mini-stereo jack
   IR Extender type EXT-RMT-EXTIRN
   IR Out port (Sender/Receiver) (1) 3.5mm mini-mono jack
   Power/Link Indicator LED (Sender/Receiver) (1) Bi-color: Blue/Green
   Power Supply (1) 24V DC, locking
   Power Consumption (Sender and Receiver combined) 12W maximum
