Gefen  VGA + HDMI konvertor na 3GSDI   s podoprou Syner-G  EXT-HDVGA-3G-SC


Switch video and audio from an HDMI and a VGA source, scale the picture, and output it to an SDI device

The Gefen EXT-HDVGA-3G-SC scales and converts video from an HDMI or a VGA source to SDI formats, including 3G-SDI and single link HD-SDI. It can also embed HDMI audio or analog L/R audio into the SDI stream. Video can be scaled up to 1080p Full HD. An intuitive and comprehensive on-screen display (OSD) menu allows easy set-up and control. This product can be configured and updated using the Gefen Syner-G™ software suite

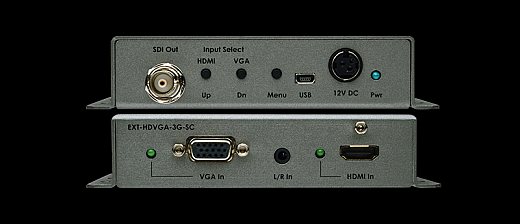

Use the included HDMI and VGA cables to connect an HDMI source to the HDMI input and/or a VGA source to the VGA input. If you will be embedding analog L/R audio into the SDI stream, connect the included 3.5mm mini-stereo cable from the source to the L/R audio input. Connect an SDI display or other downstream equipment to the BNC video connector output. Connect the included 12V DC power supply to the unit and to an available electrical outlet. The power LED will glow in blue once the power supply is plugged in. Once the unit is powered-on, the HDMI and VGA buttons can be used to select the desired input. Once an input is selected, the corresponding LED will glow in green. To bring up the On-Screen Display (OSD), press the Menu button. Use the Up and Dn (down) buttons to navigate through the various functions of the OSD.



Features :
Converts and scales HDMI and VGA and L/R analog audio to SDI
Input resolutions up to 1920 x 1200 (WUXGA) and 1080p60
Output resolutions up to 1080p60
On-screen display (OSD) menu allows easy set-up and control
Aspect Ratio Control: Full Screen, Panoramic, Letter/Pillar, Extract/Crop
Test Pattern Generator for quick system configuration
Embeds 2-channel analog stereo audio in SDI signal (VGA Input only)
Up to LPCM 7.1 audio support (HDMI input only)
Gefen Syner-G™ simplifies in-field firmware updates and advanced EDID management including custom input timings
USB port for use with Gefen Syner-G™
Wide power supply operating range (6V to 24V DC)
Locking power supply connector
Surface mountable

Specifications

   Maximum Pixel Clock - HDMI and VGA Inputs: 165 MHz
   Maximum Pixel Clock - SDI Output: 150 MHz
   Maximum TMDS Clock: 225 MHz
   Video Input Connectors:
     (1) HDMI Type A 19-pin, female, locking
     (1) VGA HD-15, female
   Audio Input Connector: (1) 3.5mm mini-stereo jack
   Video Output Connector: (1) SDI, BNC-type, female
   USB Connector: (1) Mini-B
   Input Select/Menu/Navigation Switches: (3) tact-type
   HDMI Indicator: (1) LED, green
   VGA Indicator: (1) LED, green
   Power Indicator: (1) LED, blue
   Power Supply Connector: (1) 3-pin, locking
   Power Supply: 12V DC nominal (6V to 24V DC operating range)
   Power Consumption: 5W maximum
   Operating Temperature: +32 to +122 °F (0 to +50 °C)
   Operating Humidity: 5% to 90% RH, non-condensing
   Storage Temperature: -4 to +185 °F (-20 to +85 °C)
   Storage Humidity: 0% to 95% RH, non-condensing
   MTBF: 50000 hours
   Dimensions (excluding connectors, W x H x D): 5.6" x 1.2" x 3.7" (141mm x 30mm x 93mm)
   Net Unit Weight: 0.5 lbs. (0.23kg)
