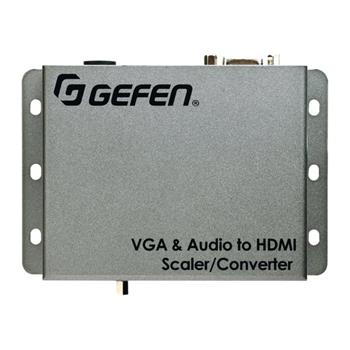

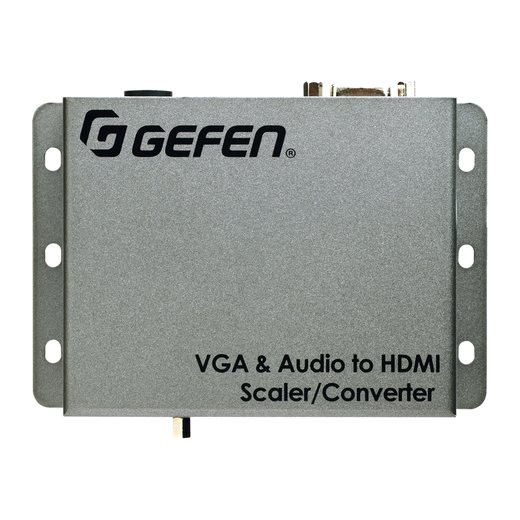

Gefen VGA & Audio to HDMI Scaler / Converter EXT-VGAA-HD-SC

Gefen VGA & Audio to HD Scaler / Converter  EXT-VGAA-HD-SC    - konverze a scaling VGA+audio do HDMI.  Podpora HD /2K  1920x1200

Scale and convert video and audio from a VGA source for use with an HDMI Display

The Gefen EXT-VGAA-HD-SC scales and converts video from a VGA source to digital video from an HDMI output. It can also embed analog L/R audio into HDMI. Video can be scaled up to 1080p Full HD and 1920 x 1200 (WUXGA). An intuitive and comprehensive on-screen display (OSD) menu allows easy set-up and control. This product can be configured and updated using the Gefen Syner-G™ software suite. The Gefen Syner-G™ is a powerful set of software tools specifically designed to help discover, configure/customize, manage, monitor, and upgrade Gefen products. Wide power supply operating range of 6V to 24V DC offers installation flexibility for mobile use, in complex studio systems with a common power supply, and with remotely located power sources. A locking power supply connector, small footprint, and a surface-mountable enclosure facilitate easy and secure installation.



Features

Gefen EXT-VGAA-HD-SC Features at a Glance

   Converts and scales VGA and L/R analog audio to HDMI
   Input resolutions up to 1920 x 1200 (WUXGA)
   Output resolutions up to 1080p60 and 1920 x 1200 (WUXGA)
   On-screen display (OSD) menu allows easy set-up and control
   Aspect Ratio Control: Full Screen, Panoramic, Letter/Pillar, Extract/Crop
   Test Pattern Generator for quick system configuration
   Embeds 2-channel analog stereo audio in HDMI signal
   Gefen Syner-G™ simplifies in-field firmware updates and advanced EDID management including custom input timings
   USB port for use with Gefen Syner-G™
   Wide power supply operating range (6V to 24V DC)
   Locking power supply connector
   Surface mountable

Specifications

   Video Amplifier Bandwidth: 350 MHz
   Input Video Signal: 1.2 V p-p
   Input Sync Signal: 5 V p-p (TTL)
   Horizontal Frequency Range: 15-70 KHz
   Vertical Frequency Range: 30 - 170 Hz
   Video In: HD-15 male
   Video out: HD-15 female
   Link Connector: RJ-45 Shielded
   Power Supply: 5V DC
   Power Consumption: 5 W (max.)
   Dimensions: 3.7" W x 0.85" H x 1.4" D each module
   Shipping Weight: 2 lbs.
