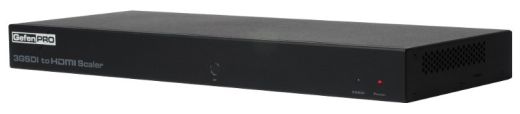

Gefen Pro 3G-SDI to HDMI Converter with Scaler -GEF-3GSDI-2-HDS

GefenPRO 3GSDI to HDMI Scaler

GEF-3GSDI-2-HDS


Features:

The GefenPRO 3GSDI to HDMI Scaler converts a single link or dual link SDI source to HDMI and scales it on the output. Resolutions up to 1080p and 2K with up to 8 channels of audio is supported. The built-in S/PDIF audio output can be used to send multichannel digital audio to a separate A/V receiver. This product uses the VXP scaler which provides high-performance scaling plus additional features: Cadence detection, frame rate conversion, advanced noise reduction, detail enhancement, and a fully integrated menu system. This product supports SDI, HD-SDI, and 3G-SDI SMPTE 425-A and 425-B input formats. The GefenPRO 3GSDI to HDMI Scaler provides superior 3G-SDI to HDMI conversion and scaling packaged in a single rack mount unit with an internal power supply.

- Supports resolutions of 1080p and 2K
- 10-bit Deep Color support
- Supports 8 channels of digital multichannel audio
- 3G-SDI (SMPTE 424M/425M, up to 3.0 Gbps)
- HD-SDI (SMPTE 292M, up to 1.485 Gbps)
- SDI (SMPTE 259M, up to 360 Mb/s)
- Supports 3G-SDI SMPTE 425-A and 425-B (4:2:2 only)
- Adjustable cadence detection
- Advanced noise reduction and detail enhancement
- Frame rate conversion
- Fully integrated sprite-based Menu System
- Built-in pattern generator with Color Bars and Cross Hatch patterns
- RS-232 Control
- IR Remote Control
- Internal Power Supply
- Field-upgradeable firmware using USB
- Rack-mountable (Rack ears included)


Tech. Spec.:

Input Video Bandwidth: 2x 165 MHz
Output Video Bandwidth: 225 MHz
3G-SDI Input Connectors: 2x BNC male
3G-SDI Loop Connectors: 2x BNC male
HDMI Output Connector: Type A 19-pin female
External Audio Output: S/PDIF
USB Connector: Type B
RS-232 Interface: DB9 female
Power Supply: 110/220V (internal)
Power Connector: IEC
Power Consumption: 20 Watts (max.)
Operating Temperature: 0 - 40 °C
Rack Size: 1U
Dimensions: 43,815 cm W x 4,445 cm H x 17,018 cm D
Shipping Weight: 1,6 kg


Package includes:

1x GefenPRO 3GSDI to HDMI Scaler
1x IR Remote Control Unit
1x Set of Rack Ears
1x AC Power Cord
1x User Manual
