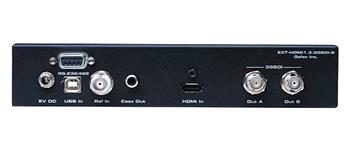

Gefen konvertor se Scalerem HDMI 1.3 na 3G-SDI EXT-HDMI1.3-2-3GSDIS

Gefen Převodník se SCALEREM  HDMI 1.3 do SD/HD/3G-SDI


The Gefen HDMI 1.3 to 3G-SDI Scaler outputs an HDMI signal as SDI/HD-SDI or 3G-SDI with resolutions supported up to 1080p/60 Hz and 2K (2048x1080/60) on two SDI output connectors along with dual link HD-SDI. HDMI embedded audio is supported at up to 7.1 channels.

An advanced chipset enables features such as: Genlock, Color & Gamma Correction, Noise Reduction, Detail Enhancement, Aspect Ratio Selection, Pattern Generator Mode, & Multiple Languages through on-screen display (OSD) Menu Support. The genlock reference input provides the capability of synching the unit with the customer's house signal.
How It Works
Connect an HDMI source to the input and a 3G-SDI display to the output. Power up the device and video signals are automatically converted to the proper format, enabling the conversion and scaling to take place.


Package Includes:

   (1) HDMI to 3GSDI Scaler
   (1) HDMI Locking Cable 6ft (M-M)
   (1) 5V Power Supply with Locking Connector
   (1) IR Remote Control
   (1) Set of Rack Ears
   (1) DB9 Serial Cable (M-F)
   (1) Users Manual



Note:  HDMI Features Supported:

   225 MHz Video Bandwidth (up to 12-bit YUV 444 @ 1080p)
   12-bit Deep Color
   x.v.Color
   Up to 8 channels of PCM audio embedded into HDMI
   Dolby Digital / DTS AC3-encoded audio

Features:

   Supports 8 channel PCM audio and Dolby Digital/DTS AC3 encoded audio.
   10-bit color depth for greater precision and dynamic range
   Proprietary 10-bit motion adaptive video de-interlacing with edge interpolation
   Output is mirrored onto two identical SDI outputs (BNC female)
   Max. active image size of 2048 samples x 2048 lines PBP processing
   Friendly OSD (On-Screen Menu Display) guides the user through operations
   Pattern mode w/color bars & coarse hatch patterns at 720p/60
   RS-232 serial port for field-upgradeable firmware
   IR remote control included
   Latency: 1 frame (when in Genlock mode)
   Advanced noise reduction and detail enhancement
   French/English menu set
   2D scaling engine

Specifications:

   Input Video Bandwidth: 225 MHz
   Output Video Bandwidth: up to 3.0 Gbps
   Maximum Output Resolutions : 1080p/60Hz and 2K (2048x1080p/60)

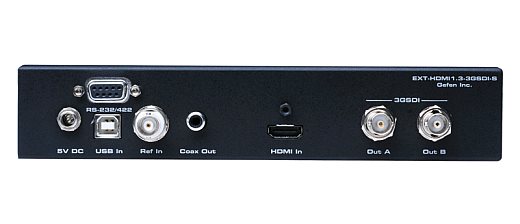

   HDMI Input Connector: (1) Type A 19 pin female, "Reference Input"
   3G-SDI Output Connectors: (2) BNC female (Mirrored outputs)
   SDI Compliant (SMPTE 259M, up to 360 Mb/s)
   HD-SDI Compliant (SMPTE 292M, up to 1.485 Gbps)
   3G-SDI Compliant (SMPTE 424M/425M, up to 3.0 Gbps)
   HDMI 1.3 compliant
   Power Consumption: 20 Watts (max) per power supply
   Power Supply: 5V DC
   Rack Size: 1U (half-width)
   Dimensions: 7.5''D x 8.2'' W x 1.7''H
   Shipping Weight: 4 lbs
