Gefen HDMI na 3G-SDI konvertor s podporou Syner-G EXT-HD-3G-C

Gefen  HDMI na  3G-SDI konvertor   s podoprou Syner-G   EXT-HD-3G-C

The Gefen HD-3G-C converts audio and video from HDMI to 3G-SDI and single link HD-SDI. Resolutions up to 1080p Full HD and audio formats up to 8 channels of LPCM are supported. This product is fully compatible with the Gefen Syner-G™ software suite.

This product can be installed on camera gear via an industry-standard 1/4-20 attachment thread located on the bottom of the unit. It can also be surface-mounted using the included surface mounting bracket. The EXT-HD-3G-C is light and compact enough to be held in place using Velcro® if your particular installation does not allow for the two preferred methods of installation described above. Set the DIP switches as necessary. Connect an SDI cable between the output of the EXT-HD-3G-C and an SDI display or other downstream equipment. Connect the HDMI source to the HDMI input of the EXT-HD-3G-C using the included Locking HDMI cable. Connect the included 12V DC power supply to the 3GSDI to HDMI Converter's power supply jack and to an available electrical outlet. To remove the power supply plug from the unit, disengage the lock by pulling back on its plastic sleeve. The power LED indicator will glow in blue to indicate that the unit is powered on. The HDMI In LED indicator will glow in green to indicate that an active HDMI source is present.Use the USB Mini-B port with Gefen Syner-G™ software suite for EDID customization as well as performing firmware updates. See the user manual for details.

Note:  The Gefen EXT-HD-3G-C is not compatible with HDCP encoded HDMI content. If the input signal is HDCP-encoded, there will be no SDI output.



Features :

Converts HDMI to SDI
Input resolutions up to 1920 x 1200 (WUXGA) and 1080p Full HD
Output resolutions up to 1080p60
Supports HDMI 12 bit color and SDI 10-bit color
Supports Color Spaces: 4:4:4 (RGB and YCbCr) and 4:2:2 (YCbCr )
Supports 3G-SDI Levels A and B
Up to LPCM 7.1 audio support
Field configurable via DIP switch settings or Gefen Syner-G™ software
Gefen Syner-G™ simplifies in-field firmware updates and advanced EDID management
Mini USB port for use with Gefen Syner-G™
Wide power supply operating range (6V to 24V DC)
Locking power supply connector
1/4-20 industry-standard camera gear attachment thread on bottom
Surface-mountable using the included detachable bracket

Specifications

Maximum Pixel Clock:150 MHz
Maximum TMDS Clock: 225 MHz

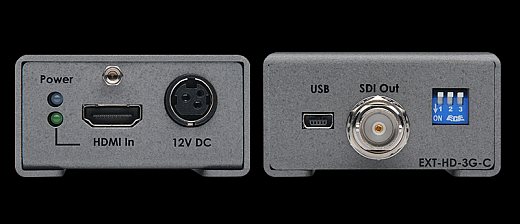

Video Input Connector: (1) HDMI Type A 19-pin, female, locking
Video Output Connector: (1) SDI BNC-type, female
USB Connector: (1) Mini-B
Configuration Switches: (3) DIP-type
HDMI Indicator: (1) LED, green
Power Indicator: (1) LED, blue
Power Supply Connector: (1) 3-pin, locking
Power Supply: 12V DC nominal (6V to 24V DC operating range)
MTBF: 50000 hours
Dimensions (excluding connectors, W x H x D): 2.9" x 1.2" x 2.3" (74mm x 30mm x 59mm)
