Gefen GefenTV High-Definition Scaler - GTV-HIDEFS upscaling na 1080p

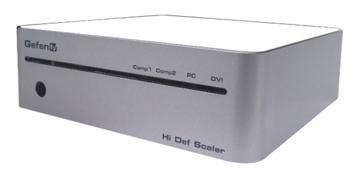

GefenTV High-Definition Scaler
GTV-HIDEFS

Vlastnosti:
Upscaling a switching standartních a HD komponentních signálů na rozlišení 1080p. Dva komponentní vstupy ( 3x RCA) , 1 x DVI vstup , včetně analogových ( jack ) a digitálních audio vstupů ( TOSlink ) . Analogové audio je na výstupu opět analogem , digitální audio na výstupu jako digitální audio přes TOSlink. Jak digitální tak analogové vstupy jsou upscalovány pixel po pixelu přes scaler v různých výstupních rozlišeních až na 1080p. Výstup je DVI + TOSlink+ analogové audio.

Bližší parametry upscaling procesu níže v popisu

Features:

The GefenTV High-Definition Scaler allows you to upscale and switch your standard definition or high definition component sources to resolutions up to 1080p. Anything from set-top boxes, DVD players to the next generation of gaming consoles including the Xbox 360 and PlayStation can be plugged into the GefenTV High-Definition Scaler.
The GefenTV High-Definition Scaler supports two component sources and one DVI source all with digital TOSlink and analog audio inputs. The analog audio inputs will be outputted as analog audio and the digital TOSlink audio inputs will be outputted as digital TOSlink audio.
Both digital and analog inputs are format converted and pixel re-scaled through the GefenTV High-Definition Scaler.
It outputs a large range of formats and resolutions that will easily match the native resolution/ format of your display to ensure highest picture quality.
DVI/HDCP compliant input: Operates up to 165Mhz (Up to UXGA @60Hz)
Supports digital HD output up to 1080p.
Integrated 8-bit triple-ADC/PLL.
Integrated DVI/HDCP compliant receiver.
Dual high quality scaling engines.
Dual 3-D motion video adaptive de-interlacers with smooth low-angle edge.
Automatic 3:2 pull-down & 2:2 pull-down detection and recovery.
High performance frame rate conversion engine.
The Proprietary Advanced Color Engine technology gives: Brilliant and fresh color.
Intensified contrast and details. Vivid skin tone. Sharp edge.
Accurate and independent color control 3D noise reduction on analog inputs only.
Operates through on-screen OSD menu control and remote control.
DVI-I input and output accepts both analog and digital video
Aspect Ratio Control
Less then one frame delay allowing for gaming.

Tec. Spec.:

Digital Video Amplifier Bandwidth: 165 MHz
Component Video Bandwidth: 350 Mhz
Input DDC Signal: 5 volts p-p (TTL)
Input Video Signal: 1.2 volts p-p
Single Link Range: 1080p/1920 x 1200
Input/Output DVI Connector: DVI-I (29 pin) female
Component Video Connector: 3 RCA
Digital Audio Connector: optical TOSlink and coax SPDIF
Analog Audio Connector: mini-phone stereo 3.5mm
Power Supply: 5V DC
Power Consumption: 12 watts (max)
Dimensions:17.5cm B x 5.4cm H x 17.5cm T
Shipping Weight: 6 lbs. 2.8Kg

Package includes:

1x GefenTV High-Definition Scaler
1x 2 meters DVI cable (M-M)
1x 5V Power Supply
1x IR Remote control
1x User's Manual
