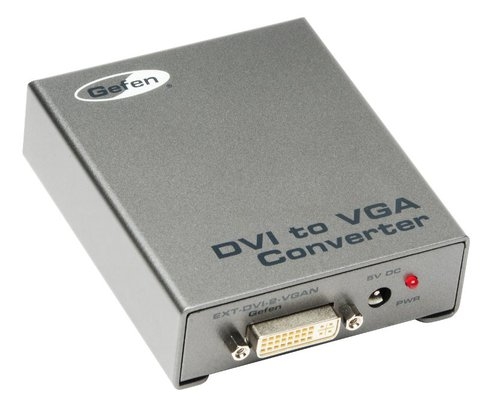

Gefen DVI to VGA Conversion Box - GFN-EXT-DVI-2-VGA

Gefen konverzní box z DVI-D na VGA pro připojení analogových zařízení, jako jsou projektory, displeje, televize , k digitálním signálům DVI-D ař do rozlišení Full HD 1920x1200 .

DVI to VGA Converter Box

EXT-DVI-2-VGAN


Features:

The Gefen DVI to VGA Converter is a small box solution that converts DVI-D to
VGA Analog PC/RGB, enabling digital sources to connect with any display, projector
or TV using VGA. Output resolutions up to 1920x1200 are supported. The
Gefen DVI to VGA Converter features advanced EDID management which uses
the EDID of the connected monitor if it is available. Otherwise, the internal EDID
is sent to the source for compatibility.

Note: This product does not support HDCP protected content.

- Enables DVI graphics to be displayed on VGA monitors or projectors
- Supports VESA resolutions up to 1920x1200 @ 60 Hz
- EDID Management for rapid integration of source and display


Tech. Spec.:

DVI Bandwidth: 165 MHz
VGA Bandwidth: 350 Mhz
Input Video Signal: 1,2 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
DVI Connector: DVI-I 29 pin female (digital only)
VGA Connector: type HD-15 female
Power Supply: 5V DC
Power Consumption: 2,5 W (max)
Dimensions: 7,62 cm W x 2,54 cm H x 9,525 cm D
Shipping Weight: 1 kg
operating temperature: 0?C - 40?C


Package includes:

1x DVI to VGA Conversion Box
1x 5V DC Power Supply
1x 2 meters DVI Cable (M-M)
1x User Manual
