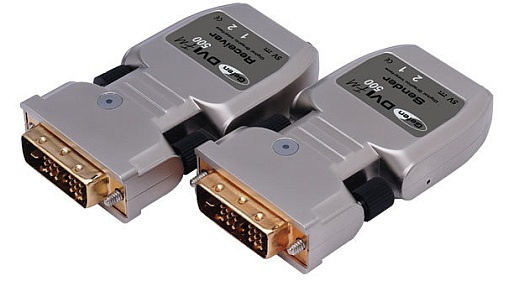

The DVI-FM500 Extender lets you extend your DVI source up to 1500m away using a 100% fiber optic extension solution. Attractive and compact DVI-to-fiber modules connect to each other via just two LC fiber optic cable strands. Extender units fit neatly behind equipment for a clean installation.
The on the fly EDID programming feature enables quick and correct synchronization of the video resolution to the display without any manual configuration. It's a great way to extend DVI easily and cleanly.
Note: The distance that DVI can be extended will depend on the type of fiber optic cable used. For a maximum resolution of 1920x1200 at 60 frames per second (60 Hz), the distances possible are as follows:
Single mode: 8(9)/125 microns core: 1500m Multi mode: 50(62.5)/125 microns core: 500m
This device is not HDCP compliant
Extends resolutions up to WUXGA (1920x1200) @60 Hz up to 1500m away Immune to EMI (electromagnetic interference) thanks to all-fiber signal transmission media Automatic EDID Programming feature enables quick and correct sync of source to display Compact Sender and Receiver units install in minutes Supports single- and multimode fiber optic cable types
Tech. Spec.:
Video Amplifier Bandwidth: 165 MHz Maximum Single Link Resolution: WUXGA (1920x1200) Operating Temperature: 0°C to 70°C Storage Temperature: - 10°C to 85°C Operating Humidity: 5% to 85% Fully Supports DVI 1.0 and DDC2B via virtual DDC Default EDID: UXGA (1600x1200) 5V Power Supply (2.5W power consumption max. each) Dimensions: 3,81 cm W / 1,27 cm H / 6,35 cm D Shipping Weight: 0,5 kg
Package includes:
1x DVI FM 500 Sender unit 1x DVI FM 500 Receiver unit 1x 5V Power Supply 1x User's Manual
Dotaz k produktu
Dotaz k tomuto produktu
K provozování našeho webu www.maczone.cz využíváme takzvané cookies. Cookies jsou soubory sloužící k přizpůsobení obsahu webu, k měření jeho funkčnosti a obecně k zajištění vaší maximální spokojenosti. Používáním tohoto webu souhlasíte se způsobem, jakým s cookies nakládáme.
Více informací...
Podrobnosti o produktu
The on the fly EDID programming feature enables quick and correct synchronization of the video resolution to the display without any manual configuration. It's a great way to extend DVI easily and cleanly.
Note:
The distance that DVI can be extended will depend on the type of fiber optic cable used.
For a maximum resolution of 1920x1200 at 60 frames per second (60 Hz), the distances possible are as follows:
Single mode: 8(9)/125 microns core: 1500m
Multi mode: 50(62.5)/125 microns core: 500m
This device is not HDCP compliant
Extends resolutions up to WUXGA (1920x1200) @60 Hz up to 1500m away
Immune to EMI (electromagnetic interference) thanks to all-fiber signal transmission media
Automatic EDID Programming feature enables quick and correct sync of source to display
Compact Sender and Receiver units install in minutes
Supports single- and multimode fiber optic cable types
Tech. Spec.:
Video Amplifier Bandwidth: 165 MHz
Maximum Single Link Resolution: WUXGA (1920x1200)
Operating Temperature: 0°C to 70°C
Storage Temperature: - 10°C to 85°C
Operating Humidity: 5% to 85%
Fully Supports DVI 1.0 and DDC2B via virtual DDC
Default EDID: UXGA (1600x1200)
5V Power Supply (2.5W power consumption max. each)
Dimensions: 3,81 cm W / 1,27 cm H / 6,35 cm D
Shipping Weight: 0,5 kg
Package includes:
1x DVI FM 500 Sender unit
1x DVI FM 500 Receiver unit
1x 5V Power Supply
1x User's Manual
