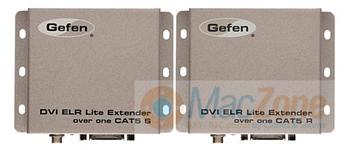

Gefen DVI CAT-5 Extender prodloužení DVI po 1 CAT5e kabelu EXT-DVI-1CAT5-SR

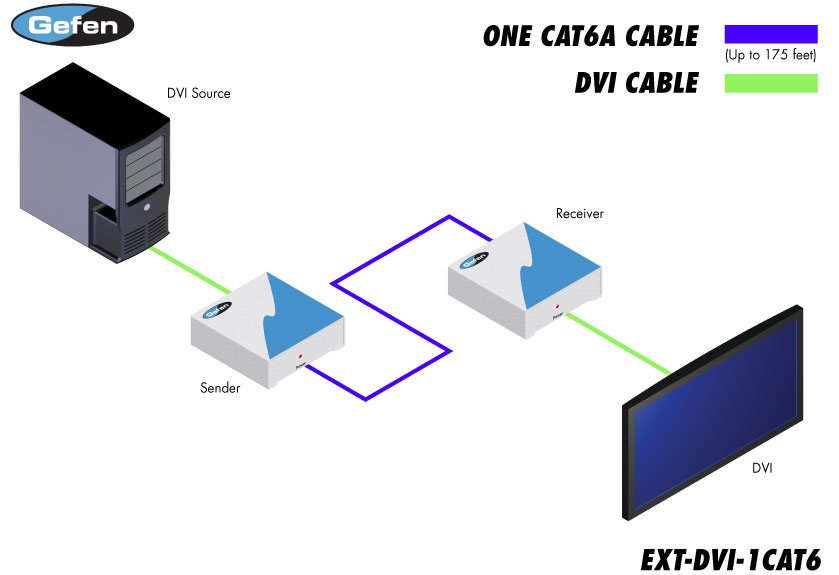

Prodloužení DVI signálu po CAT-5e  ( 60m)  nebo CAT-6 kabelu  (70m) od zdroje sigálu do monitoru . Zařízení má příjmač a vysílač, dva napájecí zdroje . Vysílač a příjmač se propojují jedním CAT 5e/ CAT6 kabelem. Macimální rozlišení 1920x1200 ( nebo 1080p) , HCDP / HPD Pass Thru . Podpora EDID informací o typu monitoru je transferována grafické kartě.

The DVI ELR-Lite Extender over one CAT5 allows the extension of any DVI source to a monitor or touch screen display, up to 230 feet (70 meters) using a CAT-6A cable, and up to 200 feet (60 meters) over one CAT-5e. This product is capable of HDCP and HPD pass-through. It uses Gefen?s ELR Lite implementation of HDBaseT® Lite? technology, allowing the DVI signal to travel along a single CAT- 5e or better cable, reducing cable costs and facilitating installation.

Features:*

- Extends DVI up to 230 feet (70 meters) over one CAT-6A cable
- Extends DVI up to 200 feet (60 meters) over one CAT-5e cable
- Supports resolutions up to 1920 x 1200 (WUXGA)
- EDID management for rapid integration of source and display
- HDCP compliant
- Locking power supplies
- Surface-mountable

Technical Specifications:*

- Maximum Pixel Clock: 165 MHz
- Video Input Connector (Sender): (1) DVI-I, 29-pin, female (digital only)
- Video Output Connector (Receiver): (1) DVI-I, 29-pin, female (digital only)
- Link Connector (Sender / Receiver): (1) RJ-45
- Internal/External EDID Selector (Sender): (1) DIP switch
- HPD Pass-Through Selector (Sender): (1) DIP switch
- HDCP Pass-Through Selector (Sender): (1) DIP switch
- Power Indicator (Sender/Receiver): (1) LED, blue
- Link Indicator (Sender/Receiver): (1) LED, green
- Power Supply (Sender / Receiver): 5V DC, Locking
- Power Consumption (Sender/Receiver): 10 W per unit (max.)
- Operating Temperature: 0 to +45°C
- Operating Humidity: 0 to 90% RH, non-condensing
- Dimensions (W x H x D): 110mm x 26mm x 86mm
- Shipping Weight: 1.4 kg

Package includes:

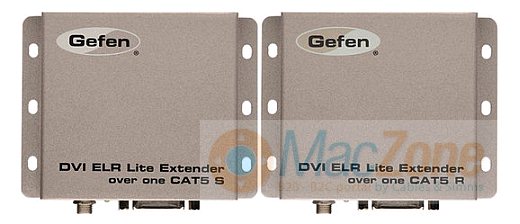

(1) DVI ELR Lite Extender over one CAT5 - Sender Unit (EXT-DVI-1CAT5-SRS)
(1) DVI ELR Lite Extender over one CAT5 - Receiver Unit (EXT-DVI-1CAT5-SRR)
(1) 6 ft. (2 m) Dual Link DVI Copper Cable (CAB-DVIC-DLN-06MM)
(2) 5V DC Locking Power Supplies (EXT-PS526AIP-LP)
(1) Quick-Start Guide (QSG-DVI-1CAT5-SR)
