Gefen Digital Audio Extender - GFN-EXT-DIGAUD-141

Gefen Digital Audio Extender - prodloužení digitálního audio signálu po jednom CAT-5 kabelu  na vzdálenost až 100m. Vstup výstup Toslink nebo S/PDIF



Extends Coaxial S/PDIF and TOSLINK® Optical Digital audio up

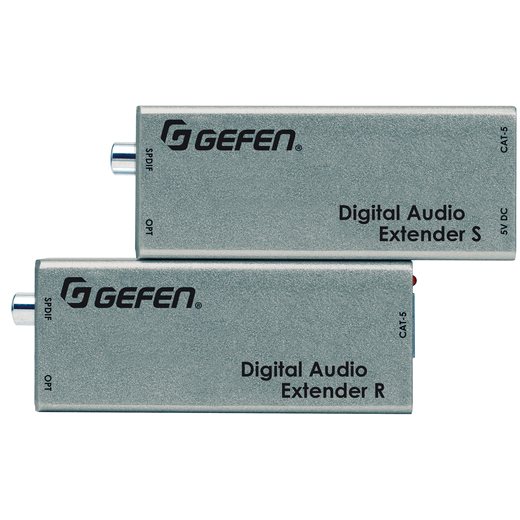

The Gefen EXT-DIGAUD-141 Digital Audio Extender over CAT-5 Extender allows you to place your digital audio components anywhere you want. It supports either S/PDIF or TOSLINK® digital audio signals, which are commonly used to transmit stereo and multichannel digital audio like Dolby Digital® 5.1, DTS, and Dolby® True HD. The Digital Audio Extender uses a Sender and Receiver system connected by a CAT-5e cable to extend the digital audio.

Audio Support

Supports multichannel digital audio like Dolby® Digital 5.1, DTS, and Dolby® TrueHD



Shipping Info

   Length9.4 (Inches)
   Width6.3 (Inches)
   Height3 (Inches)
   Weight1.15 (Lbs)
   UPC845344001210

Other Specifications

   Data Transmission Rate: 12.8 Mb/s
         S/PDIF: 96 kHz performance
         TOSLINK: 192 kHz performance
         Input/Output: S/PDIF, optical TOSLINK
         Link Connector: RJ-45 Shielded
         Power Supply: 5V DC
         Power Consumption: 5W (max) per power supply
         Dimensions (W x H x D): 3.8" x 1.2" x 1.4" (96mm x 30mm x 35mm)
           Shipping Weight: 5 lbs. (2.3 kg)

In The Box

   EXT-DIGAUD-141 Sender unit (1)
   EXT-DIGAUD-141 Receiver unit (1)
   CAB-TLINK-3MM-5ft TOSLINK® cable(1)
   EXT-PS526AIPN or EXT-PS526AIPN-6 5V Power Supply(1)
   QSG-DIGAUD-141 Quick Start Guide(1)
