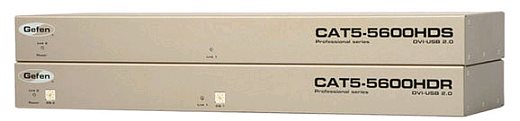

Gefen CAT5 5600HD Dual Display DVI KVM Extender

EXT-CAT5-5600HD


Features:

Extend two DVI sources and USB 2.0 peripherals from any computer or KVM device with the Gefen CAT5-5600HD Professional Series KVM extender. Extension is up to 60 meters using three (3) CAT-6A cables. The Receiver Unit allows the connection of up to two DVI monitors and up to four USB devices, expanding your workspace and increasing productivity in a post-production and editing environment. USB 2.0 data rates up to 480 Mbps are supported in addition to backward-compatibility with USB 1.1.

CAT-5 or 5e cables can be used to extend 1080i up to 45 meters and 1080p up to 30 meters. CAT-5 cable is sufficient for USB link. Shielded cables are optional.

Note:
The CAT5-5600HD is an HDCP pass-through device.

- Extends USB 2.0 60 meters or more
- Backward-compatible with USB 1.1 devices
- Works with any computer using DVI and USB
- Supports DDWG standard for DVI monitors
- Energy Star compliant
- Rack-mountable (Rack Ears Included)


Tech. Spec.:

Maximum Pixel Clock: 165 MHz
Input Video Signal: 1,2 volts p-p
Input DDC Signal: 5 Volts p-p (TTL)
Digital Video Inputs (Sender): 2x DVI-I, 29-pin, female
Digital Video Outputs (Receiver): 2x DVI-I, 29-pin, female
USB Input (Sender): 1x Type B
USB Outputs (Receiver): 4x Type A
Link Connectors: 3x RJ-45, shielded (shielded cabling optional)
Indicator Lights (Sender/Receiver): 2x LINK 1 / LINK 2 (flash red for power, green when linked)
EQ Rotary Switches (Receiver): 2x EQ 1 / EQ 2 (adjusts for cable type and length)
Power Supply (Sender / Receiver): 5 V DC
Power Consumption: 20 W per unit (max.)
Operating Temperature: 0 - 40 ?C
Dimensions (Sender / Receiver): 43,18 cm W x 4,445 cm H x 11,113 cm D
Shipping Weight: 3,5 kg
Certifications: UL (power supply), RoHS, CE


Package includes:

1x CAT5-5600HD - Sender Unit
1x CAT5-5600HD - Receiver Unit
2x 2 meter DVI cables (M-M)
1x 2 meter USB cable (A-B)
2x 5V DC Power Supplies
1x User Manual
1x Pair Rack Ears
