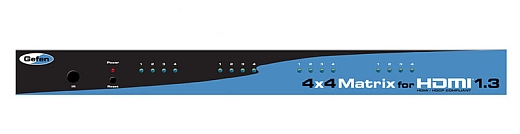

Gefen 4x4 HDMI 1.3 Matrix - matice HDMI 4x4 - EXT-HDMI1.3-444

Gefen 4x4 HDMI 1.3 Matrix - matice HDMI 4x4 - EXT-HDMI1.3-444 Connect any four HD sources to the Matrix's HDMI inputs. Then connect four displays to the Matrix's HDMI outputs. Once the sources, the Matrix and the displays are powered and connected, select which sources to view on any of the displays by using the IR remote or RS232 connectivity.

This device is HDMI and HDCP Compliant.



HDMI 1.3 Matrix Features Supported:

• Dolby TrueHD & DTS-HD Master Audio
• Deep Color (XV Color)
• 225 MHz (up to 12 bit YUV 444 @ 1080p)
• Lip-Sync Pass Through
• Color Space Conversion

Features:

• Effortlessly switches any four HDMI 1.3 sources to any four HDMI output displays
• Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved
• Discrete IR remote (included)
• Serial RS-232 remote port
• Rack ears included
• HDMI and HDCP compliant

Specifications:

• Video Amplifier Bandwidth: 225 MHz
• Input Video Signal: 1.2 volts p-p
• Input DDC Signal: 5 volts p-p (TTL)
• Single Link Range: 1080p/1920 x 1200
• HDMI Connector: type A 19 pin female
• Remote Control Port: RS232 female, mini-stereo
• Power Supply: 5V DC
• Power Consumption: 30W
• Dimensions: 17.1"W x 1.8"H x 6.8"D
• Shipping Weight: 7 lbs.
