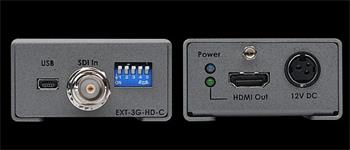

Gefen 3G-SDI na HDMI konvertor s podoprou Syner-G EXT-3G-HD-C

Převodník Gefen  z 3G-SDI na HDMI

The Gefen EXT-3G-HD-C converts audio and video from SDI to HDMI format, at resolutions up to 1080p Full HD, 3G-SDI, single link HD-SDI, and audio formats up to 8 channels of LPCM are supported. This product is fully compatible with the Gefen Syner-G™ software suite.

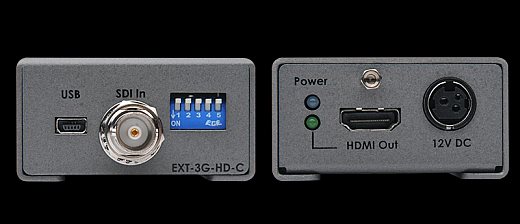

This product can be installed on camera gear via an industry-standard 1/4-20 attachment thread located on the bottom of the unit. It can also be surface-mounted using the included surface mounting bracket. The EXT-3G-HD-C is light and compact enough to be held in place using Velcro® if your particular installation does not allow for the two preferred methods of installation described above. Set the DIP switches as necessary. Connect an SDI cable between the input of the EXT-3G-HD-C and an SDI source. Connect the HDMI output of the Gefen converter to an HDMI display or other downstream equipment using a Gefen locking HDMI cable. Connect the included 12V DC power supply to the 3GSDI to HDMI Converter's power supply jack and to an available electrical outlet. To remove the power supply plug from the unit, disengage the lock by pulling back on its plastic sleeve. The power LED indicator will glow in blue to indicate that the unit is powered on. The HDMI Out LED indicator will glow in green to indicate that an active HDMI sink is present. Use the USB Mini-B port with Gefen Syner-G™ software suite for performing firmware updates. See the user manual for details.



Features :

   Converts SDI to HDMI
   Input resolutions up to 1080p60
   Output resolutions up to 1080p Full HD
   HDMI (YCbCr 4:4:4) or DVI (RGB 4:4:4) output modes
   Supports 3G-SDI Levels A and B, Single-Link HD-SDI, and SD-SDI
   Supports up to 10 bit color on input and output
   Up to LPCM 7.1 audio support
   Field configurable via DIP switch settings
   Mini USB port for use with Gefen Syner-G™ for in-field firmware updates
   Wide power supply operating range (6V to 24V DC)
   Locking power supply connector
   1/4-20 industry-standard camera gear attachment thread on bottom
   Surface-mountable using the included detachable bracket

Specifications

   Maximum Pixel Clock: 150 MHz
   Maximum TMDS Clock: 225 MHz
   Video Input Connector: (1) SDI BNC-type, female
   Video Output Connector: (1) HDMI Type A 19-pin, female, locking
   USB Connector: (1) Mini-B
   Configuration Switches: (5) DIP-type
   HDMI Indicator: (1) LED, green
   Power Indicator: (1) LED, blue
   Power Supply Connector: (1) 3-pin, locking
Power Supply: 12V DC nominal (6V to 24V DC operating range)
95% RH, non-condensing
MTBF: 50000 hours
Dimensions (excluding connectors, W x H x D): 2.9" x 1.2" x 2.3" (74mm x 30mm x 59mm)
Net Unit Weight: 0.3 lbs. (0.15kg)
