3GSDI Fiber Optic Extender

EXT-3GSDI-FO-141


Features:

3G HD-SDI Digital Video Transport System over Fiber

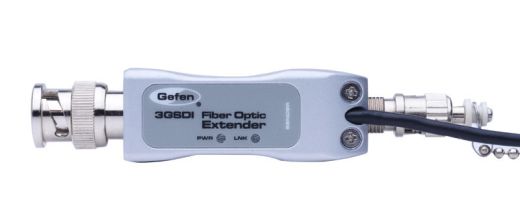

The Gefen 3G-SDI Fiber Optic Extender is a miniature digital video transport system over fiber for 3G-SDI. It transports a one-channel SMPTE-424M 3G-SDI, SMPTE-292M HD-SDI, or SMPTE-259M SDI video signal over extended distances by using either single-mode or multi-mode fiber.

- Supports SMPTE-424M 3G-SDI, SMPTE-292M HD-SDI, SMPTE-259M SDI
- Extends up to 20Km over (Single Mode) and up to 1km (Multi Mode)
- Transports Multi-rate HD-SDI Digital Video over 1 Fiber
- HD-SDI BNC input connector and ST terminated fiber optical connector
- Robust metal die-casting enclosure for harsh environment
- Automatic Input Equalization


Tech. Spec.:

Signal Format: SMPTE-424M 3G-SDI, SMPTE-292M HD-SDI, SMPTE-259M SDI
Input Impedance: 75 Ohm
Data Rate: up to 3 Gbps
Signal Level: 800mVp-p +/- 50mV
Optical Fiber Types: ST (Multi mode and Single mode)
Number of Fibers: 1
Output Connector: BNC Female
Distance: Up to 20km
Dimension: 1,9558 cm W x 1,9558 cm H x 5,0038 cm D
Power Supply: 5V DC @ 0.5 A
Power Budget: 16dB
Operating Temperature: -20° to +80° C


Package includes:

1x EXT-3GSDI-FO-141S
1x EXT-3GSDI-FO-141R
1x Users manual
2x 5V Power Supplies
