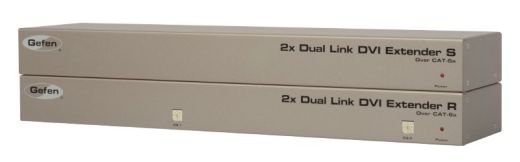

Gefen 2x DVI Dual Link extender přes 4x CAT-6a kabely EXT-2DVI-CAT6DL

Gefen 2x DVI Dual Link extender přes 4x CAT-6 kabely EXT-2DVI-CAT6DL . Prodloužení 2 x DVI dual link přes 4x CAT6a kabely, až do rozlišení 3840x2400 (WQXGA) na vzdálenost 60metrů. HDCP Pass-thru , EDID management , možnost montáže do racku ( nutný rack kit -v balení) Gefen 2x DVI Dual Link extender přes 4x CAT-6 kabely EXT-2DVI-CAT6DL . Prodloužení 2 x DVI dual link přes 4x CAT6a kabely, až do rozlišení 3840x2400 na vzdálenost 60metrů. HDCP Pass-thru , EDID management , možnost montáže do racku ( nutný rack kit )

Features:

The 2x Dual Link DVI Extender over CAT-6a extends two dual-link DVI sources to two Hi-Def displays up to 60 meters away. Dual-link resolutions up to 3840 x 2400 are supported using four CAT-6a cables. Extending dual-link resolutions over standard DVI cables have a limitation of 5 meters. Exceeding this distance requires additional repeaters and/or boosters. The 2x Dual Link DVI Extender over CAT-6a provides a cost-effective easy-to-install solution.

Note:

This product supports HDCP pass-through only when using single-link resolutions.

- Extends two dual-link DVI sources to two dual-link DVI displays up to 60 meters over four CAT-6a cables
- Supports dual-link resolutions up to 3840 x 2400
- EDID management with Local and Pass-through modes
- EQ adjustment trim pots on Receiver equalize the signal to compensate for cable length and the quality/skew variances found among different CAT-6a cables
- Locking Power Supplies
- Rack mountable (rack ears included)


Tech. Spec.:

Maximum Pixel Clock: 2 x 165 MHz
Input Video Signal: 1,2V p-p
Input DDC Signal: 5V p-p (TTL)

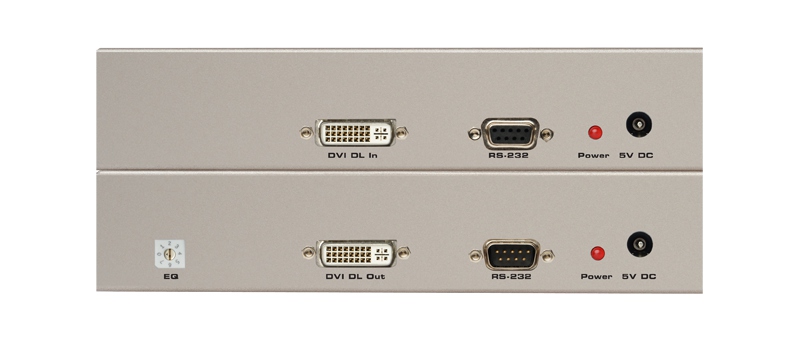

Video Input Connector (Sender): 2x DVI-I, 29-pin, female (digital only)
Video Output Connector (Receiver): 2x DVI-I, 29-pin, female (digital only)

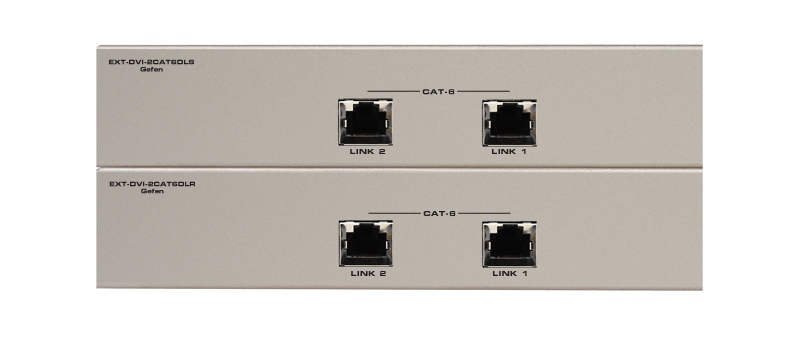

Link Connectors (Sender / Receiver): 4x RJ-45
Power Supply (Sender / Receiver): 5V DC, Locking
Power Consumption: 10W per unit (max.)
Operating Temperature: 0 - 40 °C
Dimensions (W x H x D): 435 mm x 45mm x110mm
Shipping Weight: 4,32 kg


Package includes:

1x 2x Dual Link DVI Extender over CAT-6a - Sender unit (EXT-2DVI-CAT6DLS)
1x 2x Dual Link DVI Extender over CAT-6a - Receiver unit (EXT-2DVI-CAT6DLR)
2x 2 Meters Dual-Link DVI Cable (M-M) (CAB-DVIC-DL-06MM)
2x 5V DC Locking Power Supplies (EXT-PS54AULP)
2x AC Power Cords (CAB-POWERCORD-EU)
1x Set of Rack Ears ( EXT-RACK-19-BRZ)
1x Quick-Start Guide (QSG-2DVI-CAT6DL)
