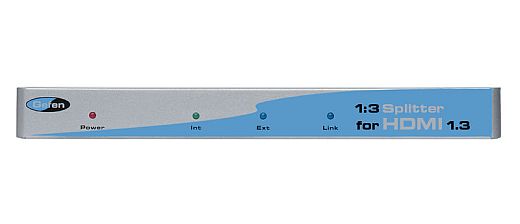

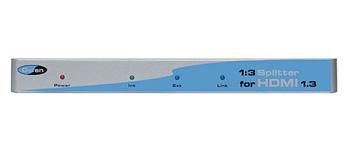

Gefen 1:3 Splitter for HDMI 1.3 - GFN-EXT-HDMI1.3-143

1:3 Splitter for HDMI 1.3

EXT-HDMI1.3-143


Features:

The Gefen Splitter for HDMI 1.3 allows AV sources such as Blu-Ray players and set-top boxes to be displayed on up to 3 High Definition Displays simultaneously. Two or more splitters may be connected together to create a larger distribution.

This product supports HDMI 1.3 Deep Color and 1080p Full HD with 8 channels of multichannel digital audio for superior quality HDMI 1.3 signal distribution.

- HDTV resolutions up to 1080p, 2k
- Computer resolutions up to 1920 x 1200
- HDCP compliant

Note:
All displays that cannot show the same video resolutions as the Primary Display connected to Output #1 may fail to show a picture. Secondary displays follow the Primary by sharing the resolution and capability information (EDID) obtained from the Primary Display

HDMI 1.3 Features Supported:
Lip-Sync Pass Through
225 MHz (up to 12 bit YUV 444 @ 1080p)
Deep Color (XV Color)
Color Space Conversion
Dolby TrueHD & DTS Master
CEC Pass Through
3DTV Pass Through


Tech. Spec.:

Video Amplifier Bandwidth: 225 MHz
Input Video Signal: 1.2 Volts p-p
Input DDC Signal: 5 Volts p-p (TTL)
Single Link Range: 1080p/60 12 bit color depth, 1920x1200
HDMI Connector: Type A ,19 pin female
Power Consumption: 10 Watts (max)
Power Supply: 5V DC
Dimensions: 30,48 cm W x 3,175 cm H x 10,795 cm D
Shipping Weight: 2,3 kg


Package includes:

1x Gefen 1:3 Splitter for HDMI 1.3
1x 2 meter HDMI cable, Male-to-Male
1x 5V DC Power Supply
1x User's Manual
